Program module of the radial reconfiguration allow to search the optimal radial connection of the high-voltage network from the point of view of its economy while the given operating restrictions are respected. For distribution network area the optimization algorithm finds specific transformers and radially connected parts of the network which should be supplied for optimal radial operation with no parallel operation of the transformers (each radial fragment of the network is supplied by exactly one transformer), while minimizing power losses.
Internal identificator: SGO Radial
Parameters:
64-bit application executable under the operation system Windows 7 and higher.
License conditions:
Non-exclusive licence is provided in terms of a licence agreement.

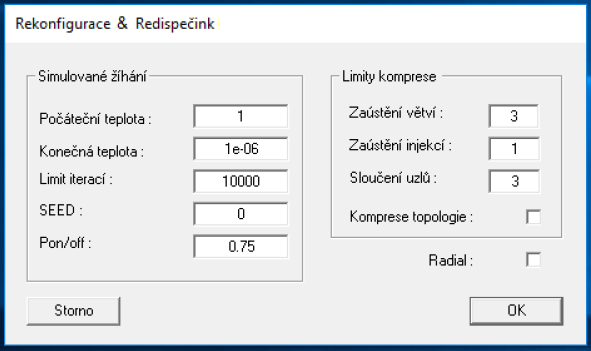

Fig. 1 – Dialog box for reconfiguration calculation of the optimal radial connection

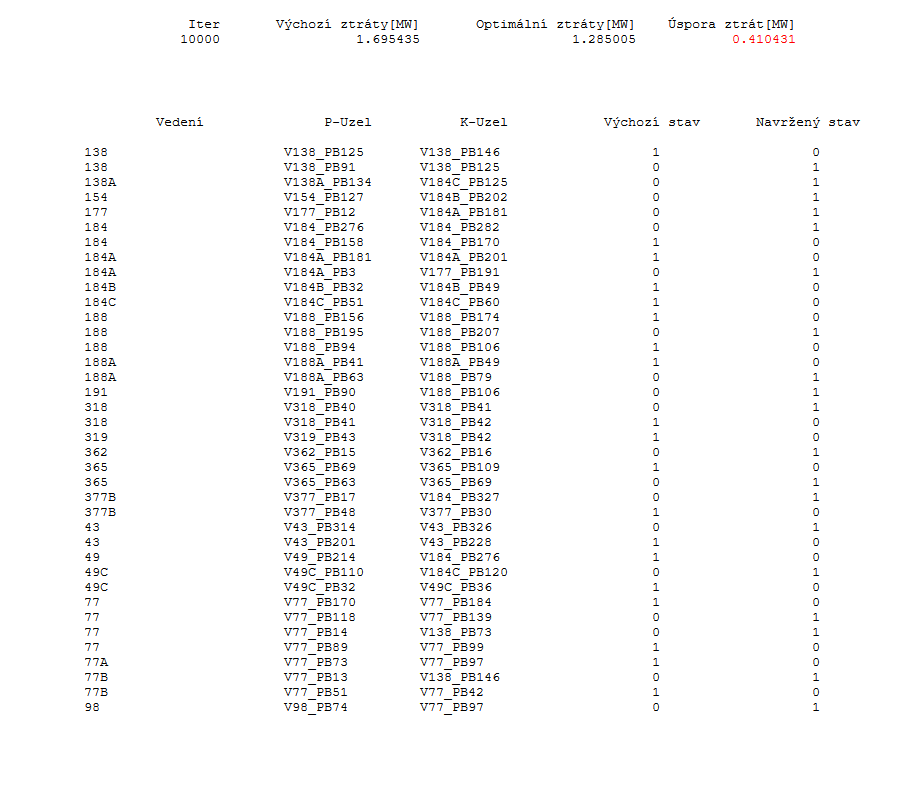

Fig. 2 – Results of performed optimal radial reconfiguration for real HV distribution network

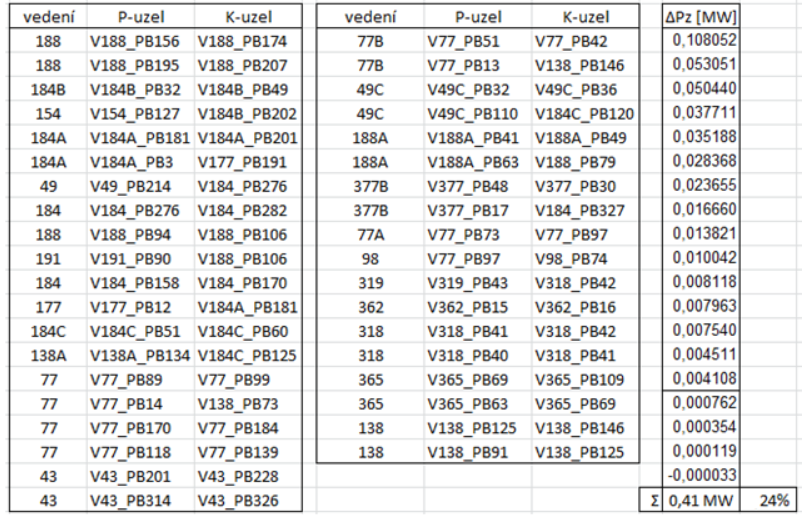

Fig. 3 – Proposed network topology connection changes and achieved differences of the power losses
Acknowledgement:
Authors gratefully acknowledge financial support from the Technology Agency of the Czech Republic under project No. TK01020070.
